Photos3 Page:
|
|

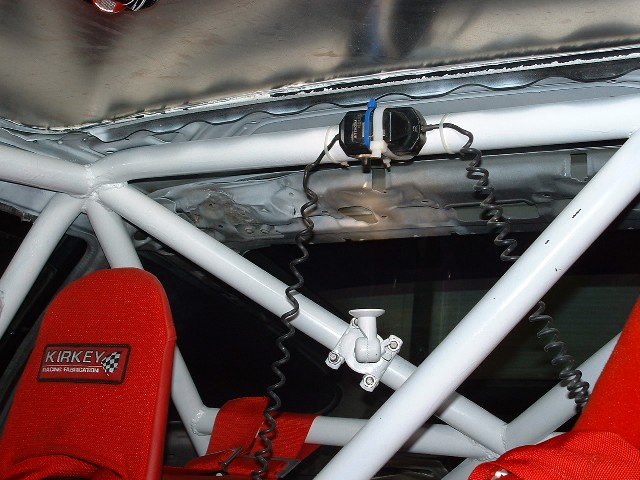

The old faithful Peltor and the improvised camera mount
|

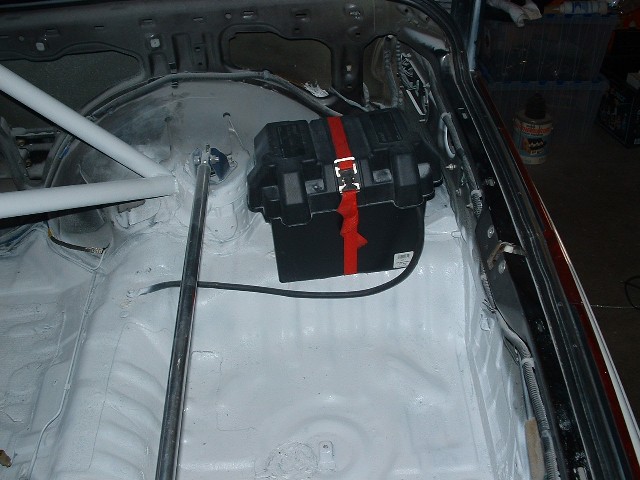

Battery Box Installation
Marine battery box, I welded a frame to cab to mount the battery on, since I am using a gel battery, I cut the bottom of the box and strapped the lid, I used 2 gauge cable both for ground and positive. Better safe than sorry. |
|
|
|

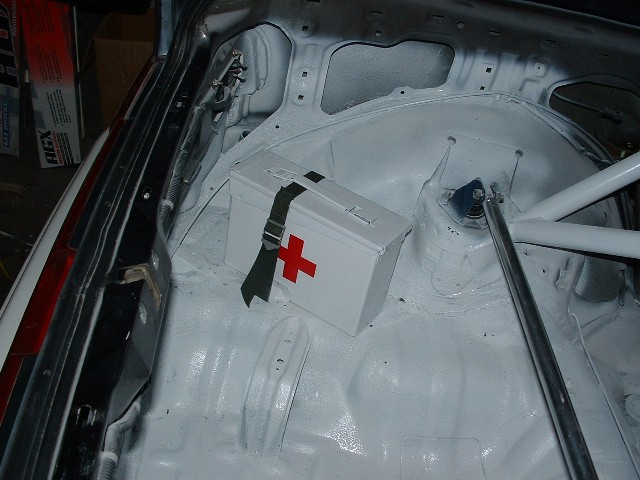

First Aid Kit
Here is the SCCA legal, revised, modified, updated, upgraded first aid kit. |

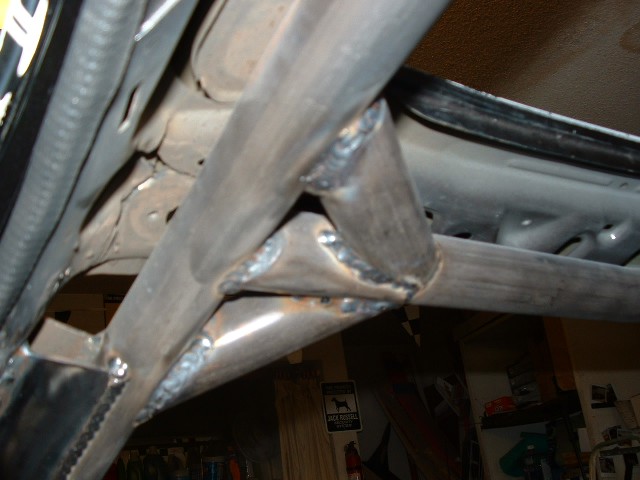

RollCage updated to 2003 requirements
1"1/2 Tubing all around including the gussets |
|
|
|

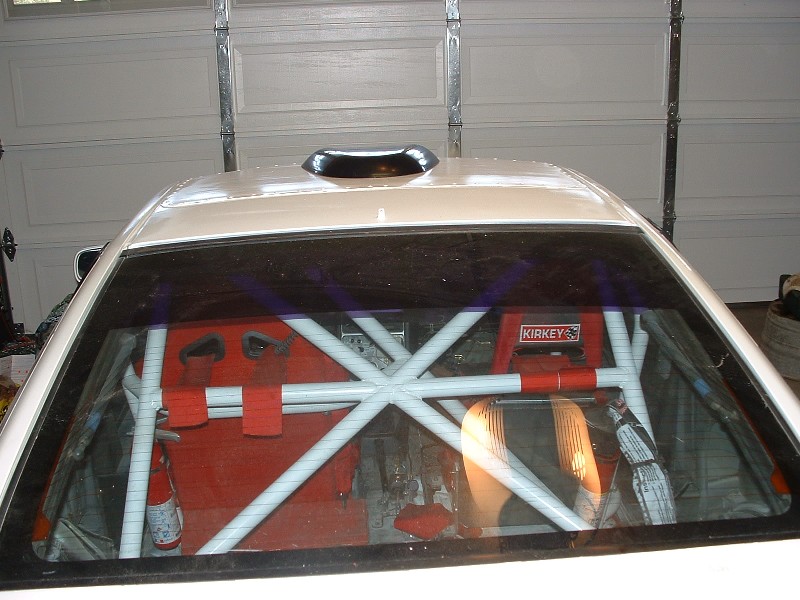

Sunroof hole covered and roof scoop mounted
|
|
|
|
|

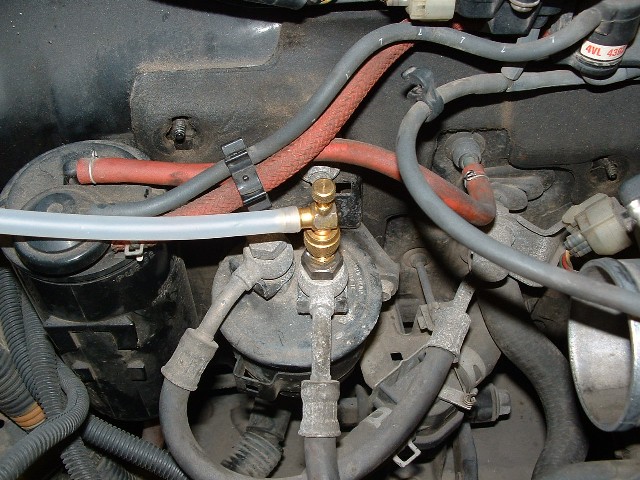

Fuel Sampling Port
Seemingly they want to make sure we don't run alcohol or maybe fusion. |
|
|
|
|

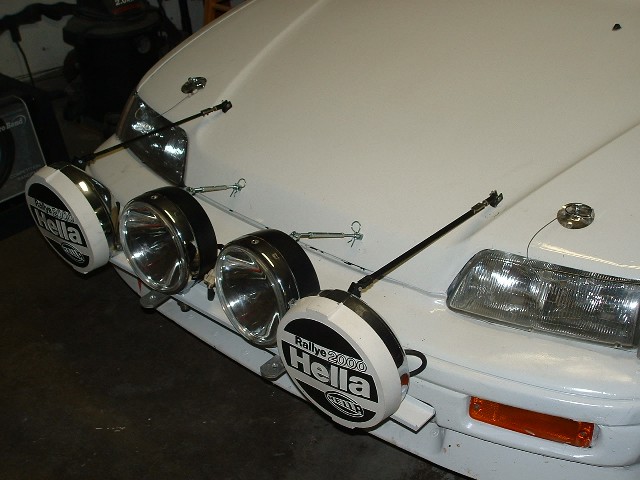

Light Bar
2 x PIAA pencil beams and 2 x Hella 2000 wide beams
Both systems have redundant circuits as back up.
They both go through their dedicated 20Amp Aircraft circuit breakers for the load.
The lights can be controlled with or without main headlights.
The PIAA braces are from OMP and the Hella braces are from a 93 Brabham F1 car,
they used to be the engine stabilizers for the JUDD V10.
A bit high tech for their new assignment.
|
|
|
|
|

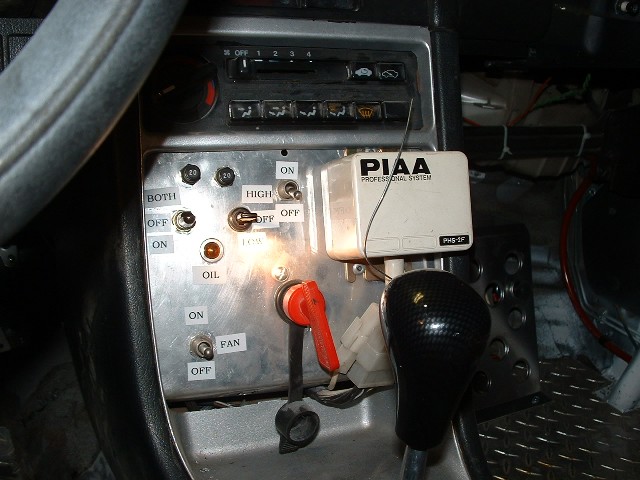

Center dash with light controls
|

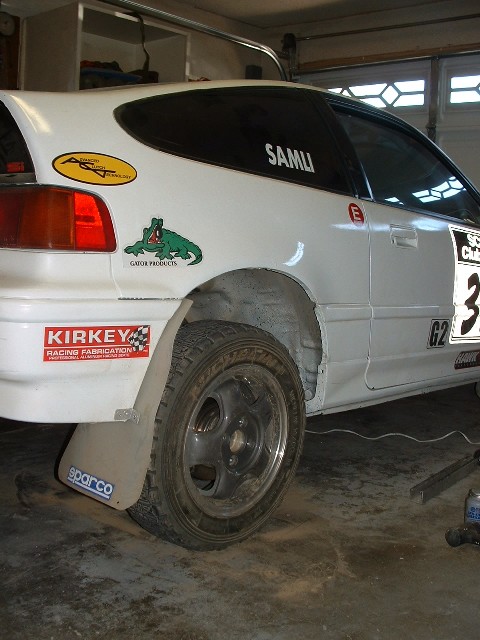

I dont think ground clearance will be a problem anymore
|
|
|
|
|

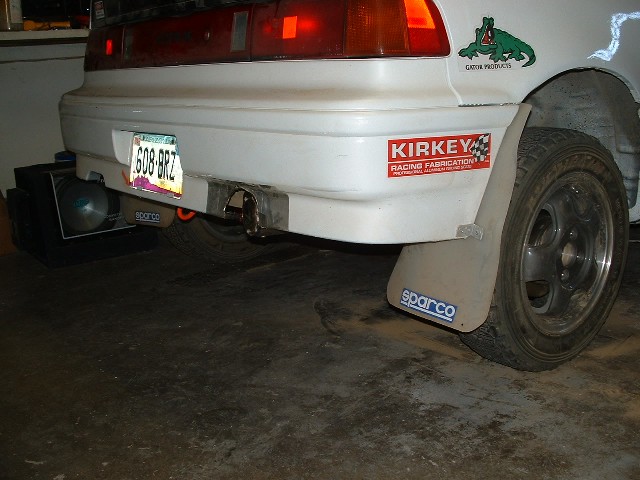

This is how high the rear end can sit
|
|
